It's time to travel in luxury anywhere and everywhere you go in a Passage Class B diesel motorhome by Midwest Automotive Designs.



The Passage is built on a Mercedes-Benz Sprinter chassis with a Mercedes-Benz diesel engine. With the interior convenience of a water heater, a stainless steel microwave, a refrigerator, and a wet bath, you will not miss any of your home amenities while on the go. You will love the comfort of the driver and passenger deluxe seating and composite seamless flooring, as well as the solid-surface countertops. You also get a HDTV to stay entertained wherever you are!



When you are ready to venture out to your favorite vacation spot, pack up your family and gear in the Midwest Automotive Designs Passage Class B diesel motorhome and enjoy luxury living!

  • Passage MD2 Lounge 170 EXT

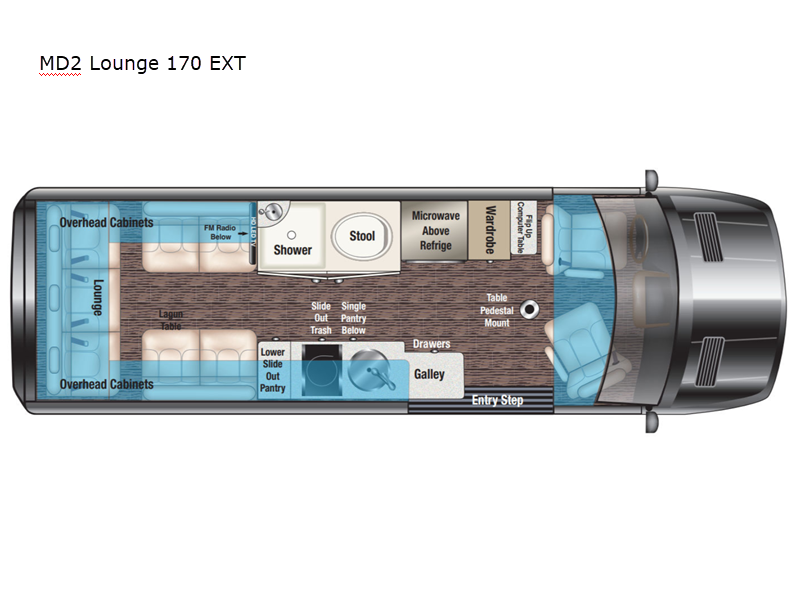

    Passage MD2 Lounge 170 EXT Floorplan Image

    Midwest Automotive Designs Passage Class B diesel motorhome MD2 Lounge 170 EXT ... more about Passage MD2 Lounge 170 EXT

    Specifications

    Sleeps 2
    Length 24 ft 6 in
    Ext Width 7 ft 8 in
    Ext Height 9 ft 6 in
    Int Height 6 ft 3 in
    Interior Color Satin Black Denali, Walnut Denali, Satin Ash
    Exterior Color White, Silver, Graphite Grey
    GVWR 9480 lbs
    Fresh Water Capacity 32 gals
    Grey Water Capacity 27 gals
    Black Water Capacity 15 gals
    Tire Size 16"
    Generator 2.5 KW LPG
    Fuel Type Diesel
    Engine Mercedes-Benz
    Chassis Mercedes-Benz Sprinter
    Horsepower 188 hp
    Fuel Capacity 24.5 gals
    Wheelbase 170 in
    Torque 325 ft-lb
    Refrigerator Type 12 Volt/110 Volt Stainless Steel
    Convection Cooking Yes
    Cooktop Burners 1
    Number of Awnings 1
    LP Tank Capacity 15.1 gals
    Water Heater Type Suburban Tankless
    AC BTU 13500 btu
    TV Info LED HDTV
    Awning Info Power with LED Light
    Gross Combined Weight 11030 lbs
    Shower Type Wet/Bath Shower
    Electrical Service 30 amp
  • Passage MD2 Lounge 170 STD

    Passage MD2 Lounge 170 STD Floorplan Image

    Midwest Automotive Designs Passage Class B diesel motorhome MD2 Lounge 170 STD ... more about Passage MD2 Lounge 170 STD

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 2
    Length 22 ft 6 in
    Ext Width 7 ft 8 in
    Ext Height 9 ft 6 in
    Int Height 6 ft 3 in
    Interior Color Satin Black Denali, Walnut Denali, Satin Ash
    Exterior Color White, Silver, Graphite Grey
    GVWR 9480 lbs
    Fresh Water Capacity 32 gals
    Grey Water Capacity 27 gals
    Black Water Capacity 15 gals
    Tire Size 16"
    Generator Quiet Touch 2.5 KW Diesel
    Fuel Type Diesel
    Engine Mercedes-Benz
    Chassis Mercedes-Benz Sprinter
    Horsepower 188 hp
    Fuel Capacity 24.5 gals
    Wheelbase 170 in
    Torque 325 ft-lb
    Number of Awnings 1
    LP Tank Capacity 15.1 gals
    Water Heater Type Diesel and Electronic
    AC BTU 13500 btu
    TV Info LED HDTV
    Awning Info Power with LED Light
    Gross Combined Weight 11030 lbs
    Shower Type Wet/Bath Shower
    Electrical Service 30 amp
  • Passage MD4 Lounge 170 EXT

    Passage MD4 Lounge 170 EXT Floorplan Image

    Midwest Automotive Designs Passage Class B diesel motorhome MD4 Lounge 170 EXT ... more about Passage MD4 Lounge 170 EXT

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 2
    Length 24 ft 6 in
    Ext Width 7 ft 8 in
    Ext Height 9 ft 6 in
    Int Height 6 ft 3 in
    Interior Color Satin Black Denali, Walnut Denali, Satin Ash
    Exterior Color White, Silver, Graphite Grey
    GVWR 9480 lbs
    Fresh Water Capacity 27 gals
    Grey Water Capacity 24 gals
    Black Water Capacity 14 gals
    Tire Size 16"
    Generator Quiet Touch 2.5 KW Propane
    Fuel Type Diesel
    Engine Mercedes-Benz
    Chassis Mercedes-Benz Sprinter
    Horsepower 188 hp
    Fuel Capacity 24.5 gals
    Wheelbase 170 in
    Torque 325 ft-lb
    Cooktop Burners 1
    Number of Awnings 1
    LP Tank Capacity 15.1 gals
    Water Heater Type Diesel and Electronic
    AC BTU 13500 btu
    TV Info LED HDTV
    Awning Info Power with LED Light
    Gross Combined Weight 11030 lbs
    Shower Type Wet/Bath Shower
    Electrical Service 30 amp

Passage Features:

Standard Features (2024)



Interior Standard

  • Diesel & Electronic Hot Water Heater
  • Suburban Water Heater (MD2)
  • 13,500 BTU Roof Top AC
  • Diesel & Electronic Powered Coach Furnace
  • Espar Coach Furnace (170 EXT MD2)
  • Quiet Touch 2.5KW Propane Generator
  • 2.5 KW LPG Generator (170 EXT MD2)
  • 2000 Watt Inverter & Charger
  • HDMI Input to Main TV
  • Multiple USB 12V Chargers
  • Multiple 120V Outlets
  • Rear HDTV (Front HDTV on MD4 Floor Plan)

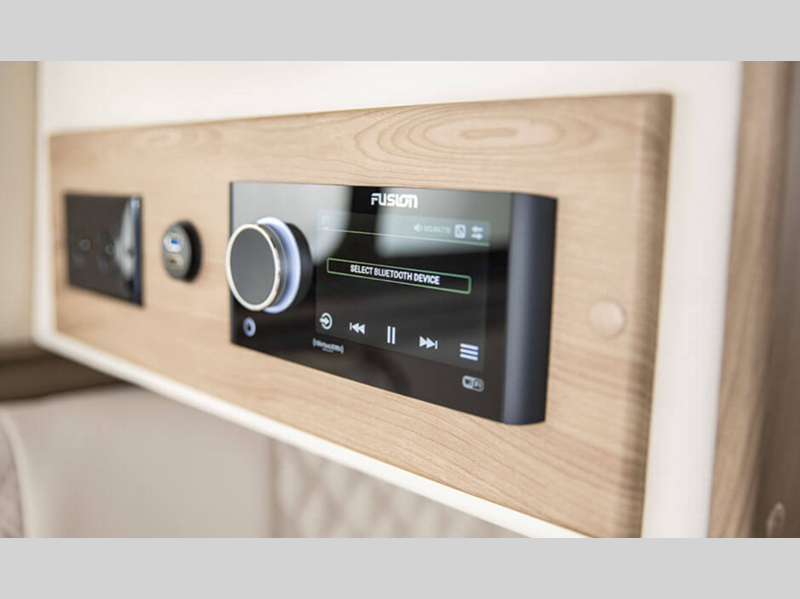

  • Rear FM & Bluetooth Radio
  • Rear JL Audio Surround Sound System
  • Digital Touch Screen Coach Controls
  • Overhead Courtesy Lighting
  • Smoke, Propane, CO Detectors
  • Fire Extinguisher
  • Climate Controlled Roof Fan
  • Solid Surface Counter Tops
  • Molded Sink with Flush Mount Cover
  • Recessed Cook Top
  • Coordinated Front Panel Refrigerator
  • Stainless Steel Refrigerator 12 Volt / 110 Volt (MD2)
  • Stainless Steel 110 Volt Convection Microwave (MD2)
  • Stainless Steel Microwave
  • Lagun Removable Table
  • Cabinets and Wardrobe With Hidden Hinges
  • Dove Tail Drawers With Residential Soft Close Slides
  • Soft Touch Automotive Color Keyed Walls and Headliner
  • Composite Seamless Flooring
  • Valances with Wood Inlay and Indirect Lighting
  • Coordinated Door Panels

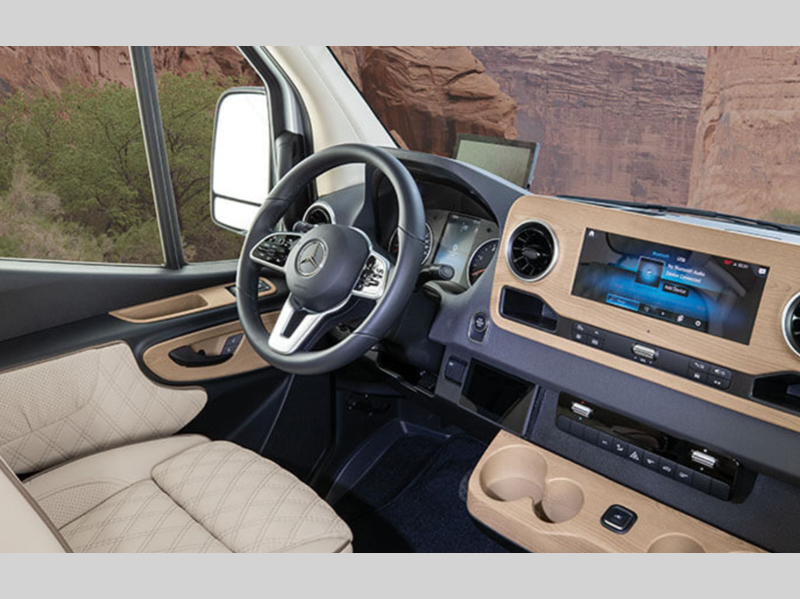

  • Custom Dash and Door Handle With Wood Grain
  • Custom Front Floor Mats W/ Non Slip Rubber Backing

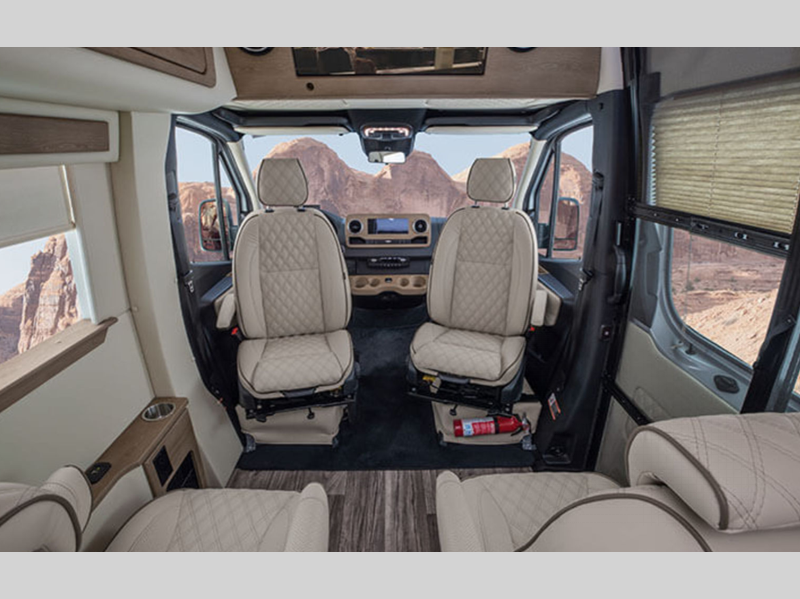

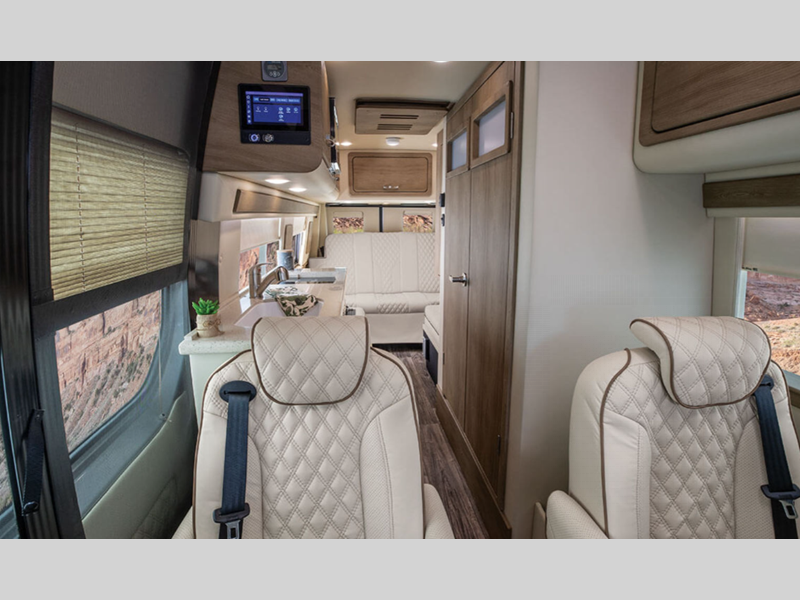

  • Driver and Passenger Deluxe Seating & Swivel Pedestals
  • Rear Captain Chairs With Swivel & Slide Pedestals (MD4, STD)
  • Fold Down Computer & Writing Table For Driver
  • Custom Seating With Seat Belts
  • Interior Entrance Grab Handle

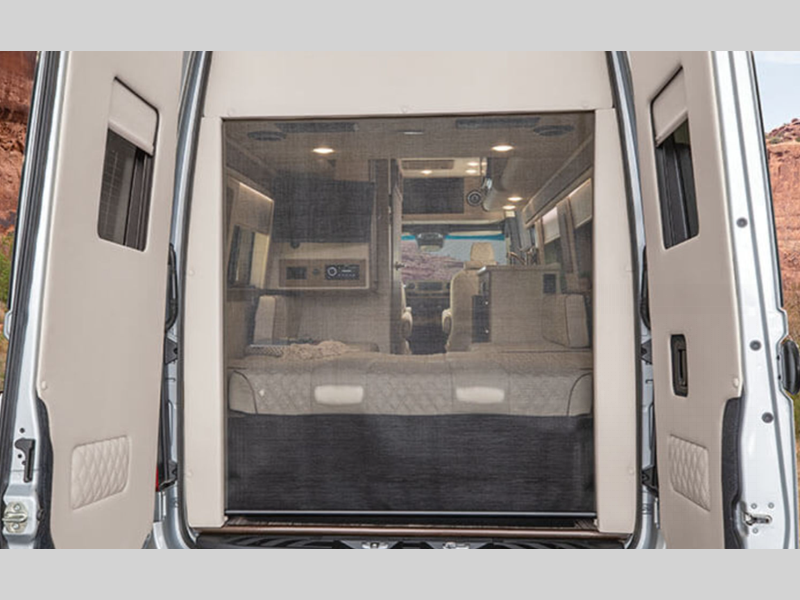

  • Side and Rear Screen Doors

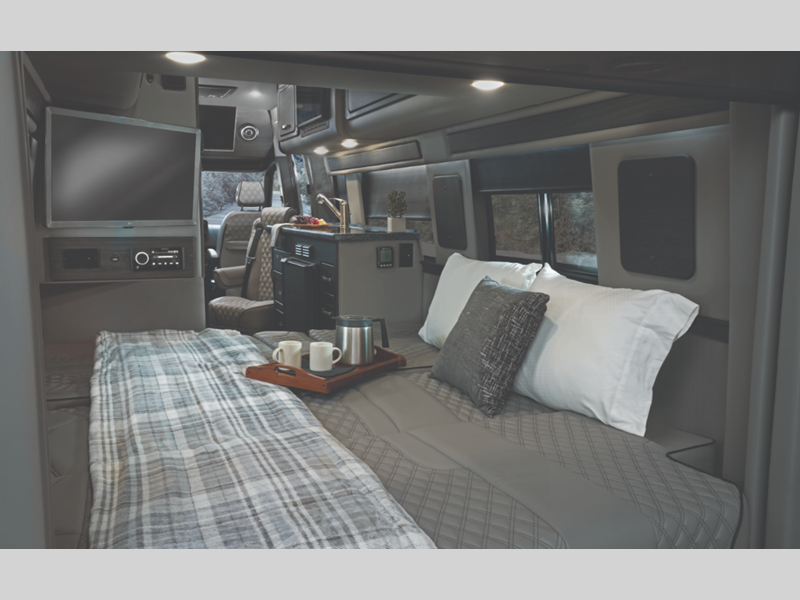

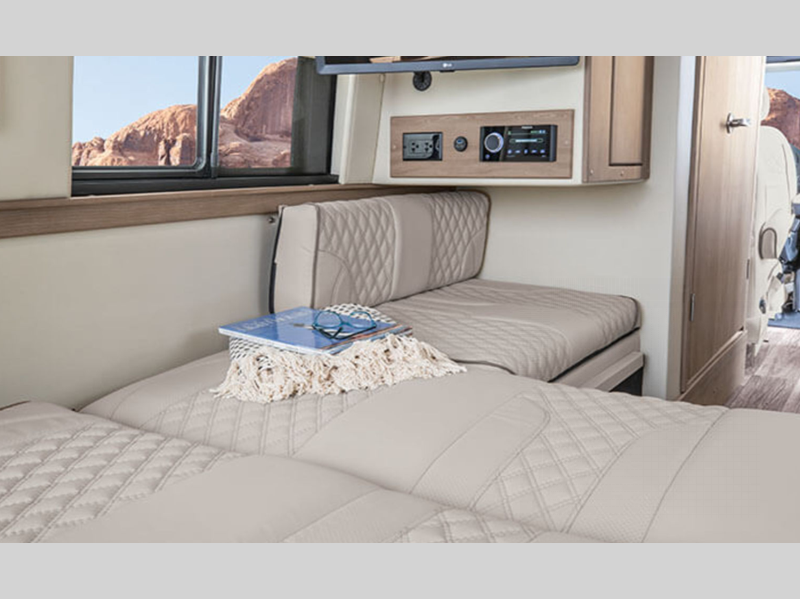

  • Power Folding Rear Sofa Bed
  • Under Sofa Storage
  • Complete Insulation Package
  • Complete Privacy Shade Package
  • Front Privacy Window Night Shades

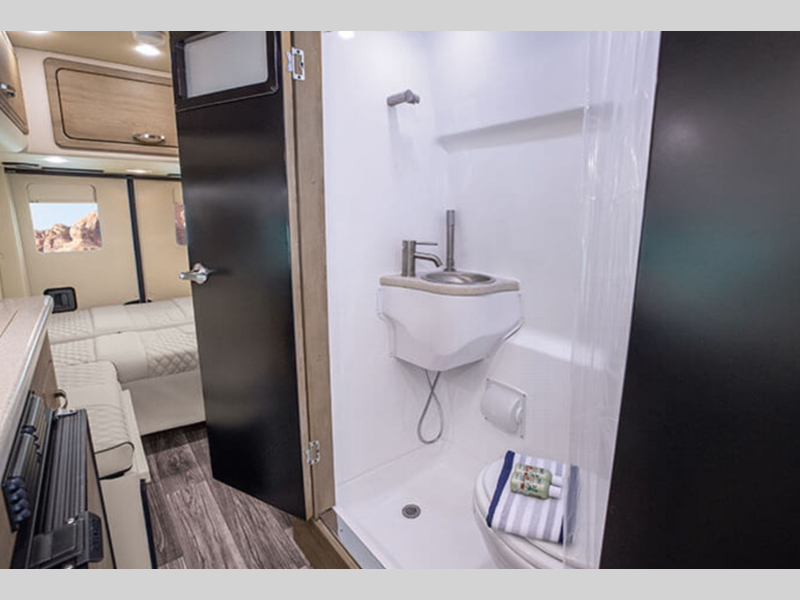

  • Shower With Dual Entry Solid Doors With Portal Windows
  • Solid Surface Sink in Bath Retractable Clothes Line
  • Shower Curtain
  • Porcelain Toilet
  • Power Bath Vent
  • Heating Pads For Fresh And Grey Holding Tanks
  • Sani Flush Black & Grey Tank Flush
  • 27 Gal. Fresh Water Holding Tank (19gal on Fd2)
  • 24 Gal. Grey Water Holding Tank (22gal on FD2)
  • 14 Gal. Black Water Holding Tank
  • 32 Gal. Fresh Water Holding Tank (MD2)
  • 27 Gal. Grey Water Holding Tank (MD2)
  • 15 Gal. Black Water Holding Tank (MD2)

Exterior Standard Features

  • Tinted Side and Rear Windows
  • Rear Slider Screened Windows
  • Color Keyed Bumpers and Body Moldings
  • Rear Hitch with Wiring Package
  • Upgraded Sumo Suspension
  • Aluminum Wheels
  • Rear Back-up Camera System

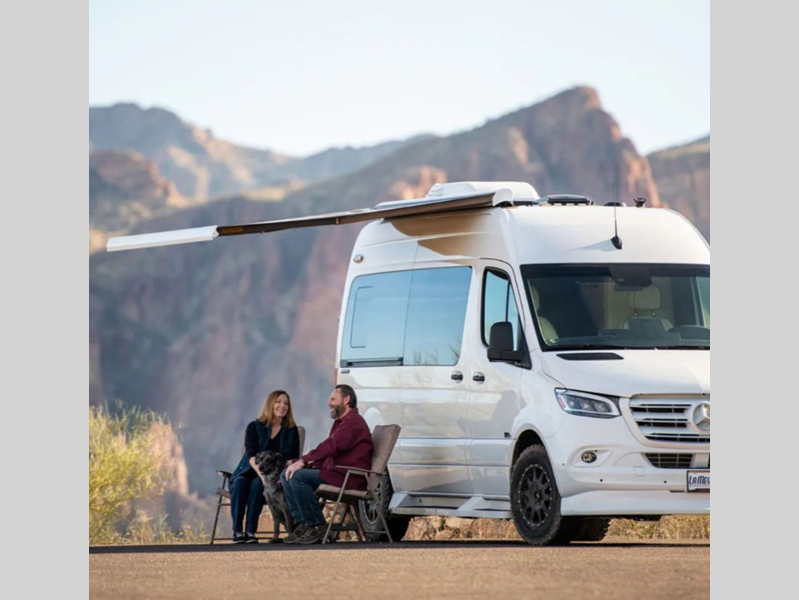

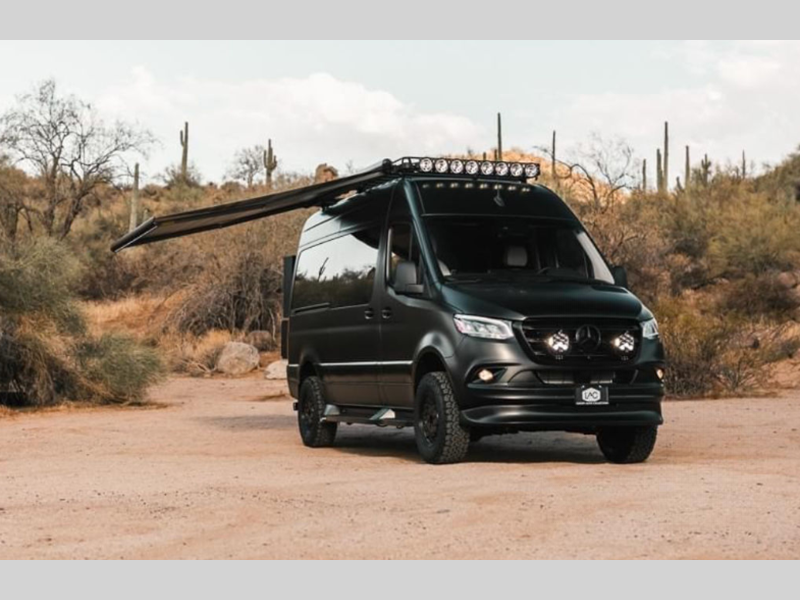

  • Power Awning with LED Light
  • LED Patio Light
  • 120V Outlet
  • HD Digital Air TV Antenna
  • Roof Top Solar Charging System
  • Dual Battery Charging System
  • 300Ah House Battery (70Ah on FD2)
  • 30 Amp Shore Line Power Plug
  • 15.1gal Propane Tank (10gal on FD2)
  • All In One Utility Bay Houses the Following Features
  • Cable TV Input
  • Fresh Water Fill
  • Exterior Shower
  • Macerator Pump with Power Gates and Power Hose Reel

Available Options

Passage 170 STD

  • New Molded Low Profile Spoiler
  • Seat Heat & Massage For All Captions
  • SLS Diamond Seating Pattern
  • Surround View Camera System With Monitor
  • Wireless Internet Router & Apple TV
  • 1080Ah Lithium Package
  • (3000 Watt Inverter, 12v Roof-Top AC, Removes Generator and Propane)
  • Complete Roof Rack w/ Ladder
  • Air Ride Suspension System
  • 4×4 Drivetrain With High / Low Gear Box
  • All Terrain Tires & Black Rims
  • Weekender Package
  • (Weaved Flooring, Rain Glass Shower Door, Power Window Shades)

Passage 170 EXT MD4

  • Power Drop Down Bed
  • AMG Single or SLS Double Needle Diamond Pattern Seating
  • Satin Interior Wood Finish
  • Front Spoiler With Lights
  • Wireless Internet Router & Apple TV
  • 300 Amp Hr. Lithium Batteries w/ BMS & Chassis Battery Boost
  • 600 Amp HR Lithium Eco-Freedom Package W/BMS & Battery Boost
  • Complete Roof Rack w/ Ladder
  • VB Air Ride System
  • 4×4 Chassis Upgrade
  • All Terrain Off Road Tires 16? Black Rims

Passage 170 EXT MD2

  • Power Drop Down Bed
  • AMG Single or SLS Double Needle Diamond Pattern Seating
  • Satin Interior Wood
  • Finish Front Spoiler With Lights
  • Wireless Internet Router & Apple TV
  • 300 Amp Hr. Lithium Batteries w/ BMS & Chassis Battery Boost
  • 600 Amp HR Lithium Eco-Freedom Package W/BMS & Battery Boost
  • Complete Roof Rack w/ Ladder
  • VB Air Ride System
  • 4×4 Chassis Upgrade
  • All Terrain Off Road Tires 16? Black Rims

See us for a complete list of features and available options!

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.

Due to the current environment, our features and options are subject to change due to material availability.

Manu-Facts:

From our headquarters in Elkhart, Indiana, we’ve been creating custom luxury vans under the Freightliner and Mercedes-Benz marques ever since the Sprinter was introduced here in 2001. Our pioneering work and artistry has led to our being chosen by Mercedes-Benz as an approved upfitter of their luxury Sprinter Vans.



Through our in-house engineers, designers and craftsmen – including our own custom seating division and wood processing department – we can do what others can’t. From personal use luxury vans to corporate limousine vans, Midwest assures you of the very best in quality, comfort and durability.



Whether it is a fleet of 100 or a one-of-a-kind luxury conversion, there is no request too large and no project too small. Your complete satisfaction is our mission, and we invite our customers to become completely involved in the build process.



At Midwest Automotive Designs, our success has been built on service, integrity, design and value.



These aren’t just marketing buzzwords to the men and women who handcraft our luxury vans – they’re the aspiration qualities that keep us jumping out of bed every morning, ready to work on our next masterpiece. Your masterpiece.
